Descriptions

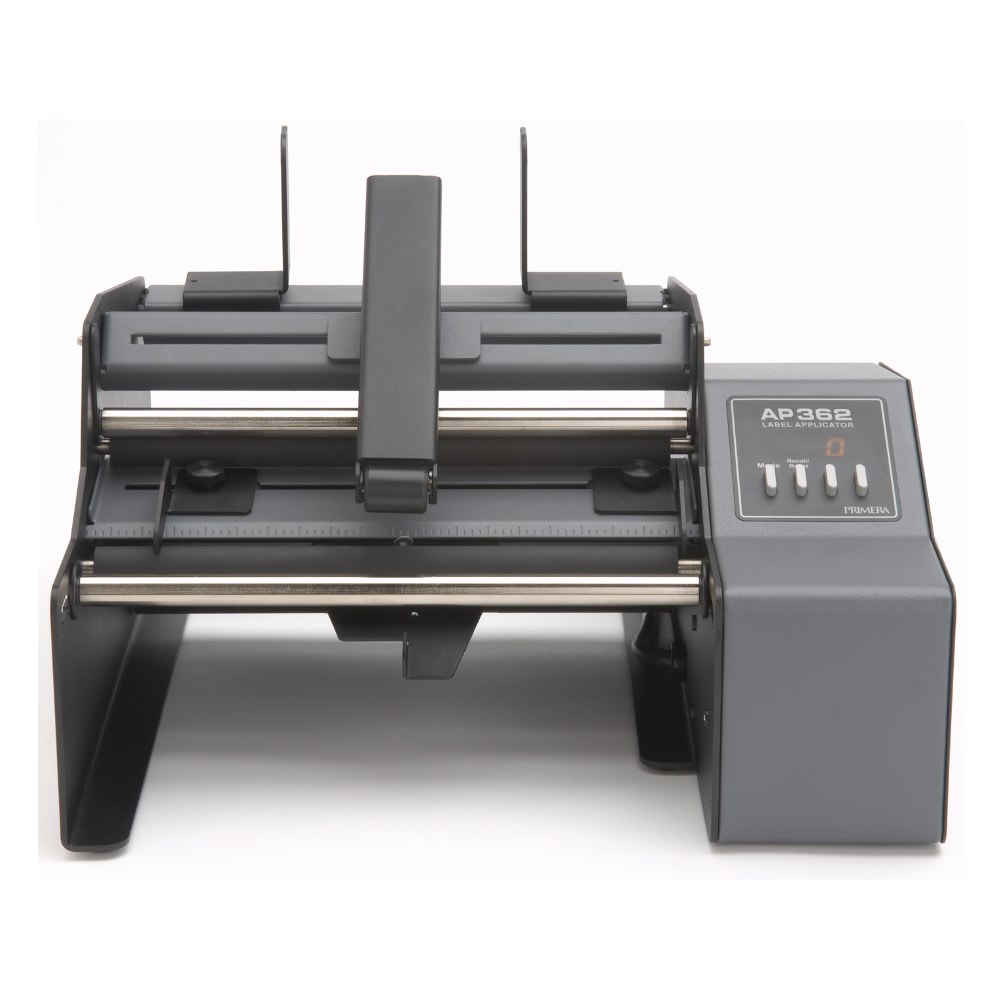

Primera’s AP-362 Label Applicators are the perfect semi-automatic labeling solution for cylindrical containers as well as many tapered containers, including bottles, cans, jars and tubes.
The built-in spring-loaded pressure arm makes sure labels are applied firmly and without wrinkles. A built-in LED counter and memory for up to nine front-to-back label offsets is also included.
With an AP-Series Label Applicator you’ll apply labels faster and more accurately – helping to speed up your production and sell more of your products!
Key Features
- Quick set-up and easy operation
- Accurately applies labels to the front and back with variable spacing
- Fast – labels are applied at 5.3” (135mm) per second – up to 1200 containers per hour
- Compact size – fits on most desks and countertops
- Professionally designed – one of the only semi-automatic label applicators available with UL, CSA and FCC safety and emissions certifications
- Industrial strength – built with heavy-duty sheet metal and steel for long life
Specifications
Container Width: 1” to 9.4” (25.4mm to 238mm)
Container Diameter: 0.6” to 6.7” (15mm to 170mm)
Container Shape: Supports Cylindrical and Most Tapered Objects
Supply roll diameter: Up to 8” (203mm)
Media liner width: 1” to 8.375” (25.4mm to 213mm)
Supply roll core: 2” to 3” I.D. (51.8mm to 76.2mm)
Electrical rating: 12VDC, 5.0A
Power requirements: 100-240VAC, 50/60 Hz, 60 watts
Agency certifications: UL, UL-C, CE, FCC Class A
Weight: 16 lbs. (7.26 kg)
Dimenions: 13.4”W x 8.9”H x 12.9”D; (340mmW x 226mmH x 328mmD)
Brochure
Warranty
One year manufacturer warranty. Optional extended warranty available.
