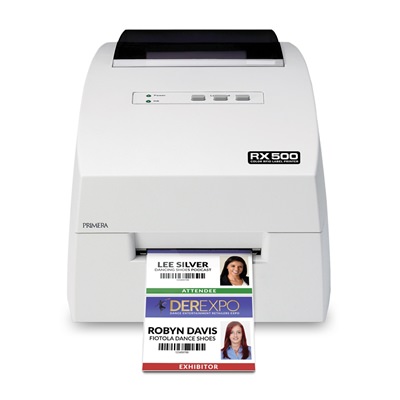

RX500 Color Label Printer

Maximize productivity with the Primera RX500 RFID label and tag printer, the only fully integrated desktop RFID (full color) label and tag printer. It is a compact size and weight, so it has a small foot print and is easy to carry. It’s excellent for businesses with projects that need RFID and color features without taking up too much space. Not only is this printer’s UHF reader and encoder by Honeywell®, it also supports EPC Global Class 1 Gen 2, ISO 18000 -6B and 6C.

Free Shipping Truck

Free Ground Shipping
within the Continental United States.

$2,495.00
SKU: E07750
Brand: Primera

This inkjet label and tag printer is an excellent addition to any business looking for integrated technology and features. It is compatible with Windows 7/8x/10+ and Mac OS x 10.9+ and is easily integrated with most software. The printer is very light weight and won’t overtake available desk space. It is great for short run color RFID printing and boasts 4800 dpi full color printing as well. The ultra high resolution inkjet printer produces tags and labels up to 2.5” (63.5mm) per second up to 4.25” (108mm) wide.



Key Features

  • Short-run color RFID printing
  • Prints up to 4" wide
  • Up to 2.5"/second + 1-2 sec for encoding
  • 4800 dpi full-color printing
  • Print & encode in a single machine


Specifications

Print Method: Inkjet

Print Resolutions: 4800 x 1200 dpi, 1200 x 1200 dpi, 600 x 600 dpi

Ink Cartridge: Color (CMY)

Colors: 16.7 million

Color Matching: Z-Color™ Color Matching Software

Print Width: 0.75" (19mm) to 4" (101.6mm)

Print Length: 0.75" (19mm) to 24" (609.6mm)

Media Width: 1" (25.4mm) to 4.25" (108mm)

Media Types: Roll-fed pressure-sensitive labels, roll-fed tags, fan-fold labels or tags

Media Sensing: Moveable see-through sensor for die-cut labels; Reflective for labels and tags with black stripe; Continuous label stock; Preprinted label stock.

Supply Roll: 5" (127mm) maximum diameter on 2" (50.8mm) core. Core has additional restrictions - see manual.

Ink Level Warning: Calculates actual number of prints remaining based upon ink usage of graphics being printed (patent-pending)

Indicator Lights: Power, Ink

Controls: Pause, Load/Feed, Unload

Operating Systems:

  • Windows® 7/8/10+
  • Mac OS X 10.9+

Recommended Minimum System:

  • For PC: Pentium® IV computer or better, 512MB RAM, 5GB free hard drive space, USB port
  • For Mac: 1 GHz Intel processor or higher, capable of running Mac OS X v10.7 or higher, 1GB RAM, one available USB port

Label Design Software: Bartender UltraLite Primera Edition included for PC Only. Can also be used with most other popular label design and graphics software programs.

Electrical Rating: 12VDC, 5.0A

Power Requirements: 100-240VAC, 50/60 Hz, 60 watts

Certifications: UL, UL-C, CE

Weight: 7.0 lbs. (3.2 kg)

Dimensions: 10.4"W x 15.3"D x 7.1"H (closed), 17.4"(open) 264mmW x 389mmD x 180mmH (closed), 442mmH (open)

Included: Bartender Ultralite software for Windows, 4”X3” Tuffcoat™ High-Gloss Paper starter roll and starter tri-color cartridge.



Label Specifications

Label width: .75" (19.05mm) - 4.25" (107.95mm)

Liner/media width: 1.5" (38.1mm) - 4.375" (111.13mm)

Label height/length: 0.75" (19.05mm) - 17" (431.8mm)

Gap between labels: 0.10" (2.5mm) - 10" (254mm)

Width of thru-hole opening: 0.25" (6.325mm) - 0.5" (12.7mm)

Distance from edge of media to edge of thru-hole: 0.2" (5.1mm)  - 2.25" (57mm)

Reflective/Black Mark Width*: 0.1" (2.54mm) - N/A

Max Outer Diameter (OD): N/A - 5.0"(127mm)

Inner Core Diameter (ID): N/A - 2.0" (50.8mm)

Total Thickness (Liner + Label)**: N/A - 0.010” (10 mil)

Distance from edge of media to edge of label: Printer driver assumes 2 mm gap. However, this is adjustable via the left margin offset.
